FINOLEX AGRICULTURE SOLUTIONS

Move water farther. Grow with confidence.

Find the right pipe, fitting and jointing system for your land, pressure and agricultural application.

  • 20–400 mmPipe size range
  • Selfit & RingfitTwo jointing systems
  • IS 4985 : 2021Certified quality
  • 2.5–12.5 kgf/cm²Built for reliable water movement
01 — START WITH YOUR GOAL

What are you trying to achieve?

Choose the job your water needs to do. We’ll take you to the right system — no catalogue browsing required.

1
Step 1 of 3 · Application

What will the system be used for?
2
Step 2 of 3 · Farm context for {{ appName }}

Tell us a little about your land.

0{{ q.num }}{{ q.q }}{{ q.optLabel }}
Step 3 of 3 · Recommended starting point

PVC-U Agriculture Pipe — {{ rec.sysName }}

Product family
PVC-U Agriculture Pipes · IS 4985 : 2021
Jointing system
{{ rec.sysName }} — {{ rec.joint }}
Size range
{{ rec.size }}
Pressure
{{ rec.pressure }}
Why this fits
  • {{ w }}
    •
Recommended fittings
Installation resources
Speak with an expert

This recommendation provides initial product guidance. Final system design and technical validation should be completed with an authorised dealer or qualified engineer.
03 — FROM SOURCE TO CROP

See how the complete system works.

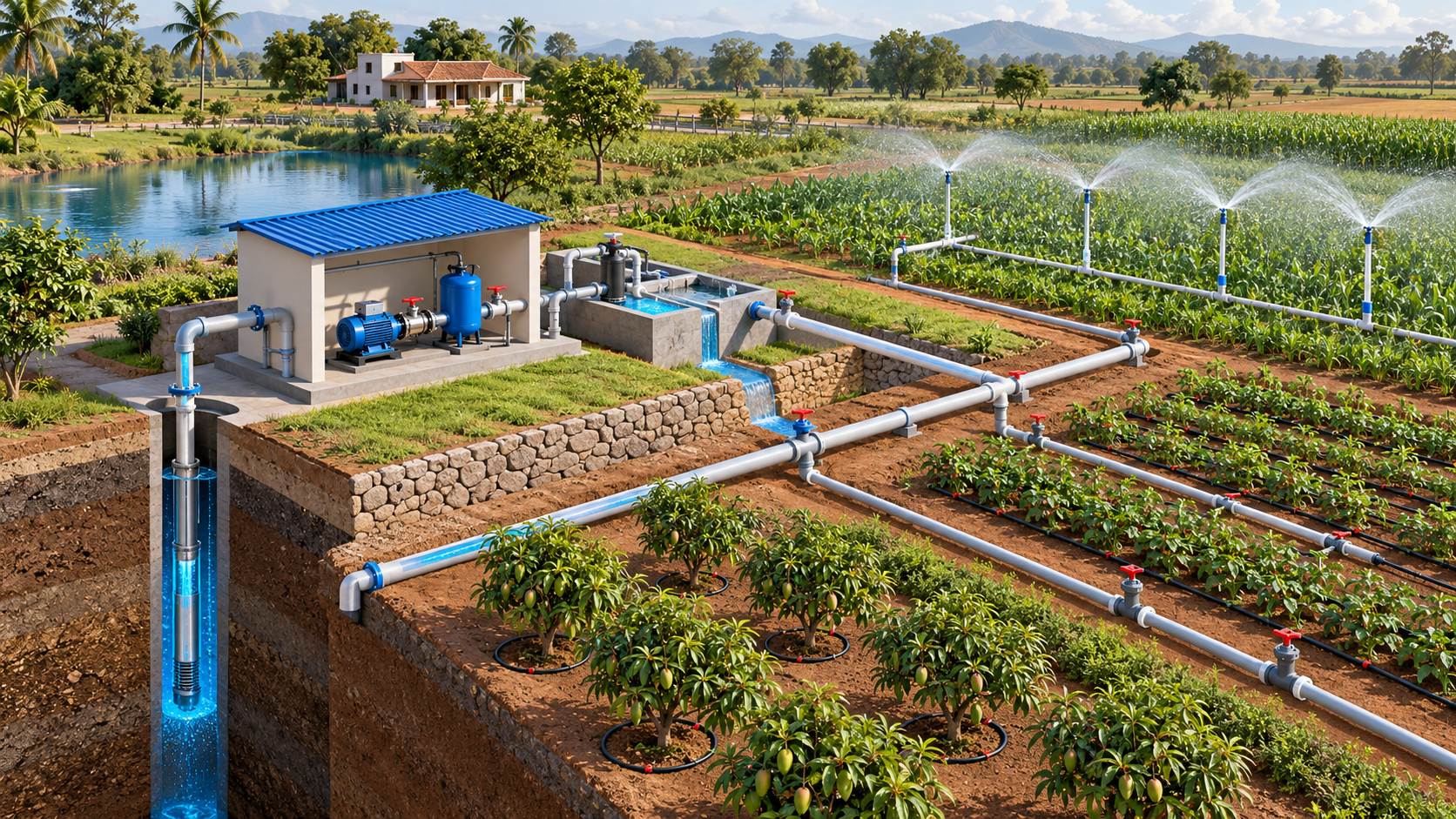

Cutaway illustration of a farm water system: a borewell feeds a pump house, a PVC-U mainline runs past mango trees, branches with valves feed drip lines and sprinklers over crops
Component {{ storyOfTotal }}{{ storyF }}
{{ storyT }}
Products: {{ storyProd }}
Select a numbered hotspot, or keep scrolling.
  1. {{ c.n }}

    {{ c.t }}

    {{ c.d }}

    HOW {{ c.f }} INFLUENCES SELECTION {{ c.fd }}
04 — CHOOSE YOUR JOINT

Two jointing systems. One standard of reliability.

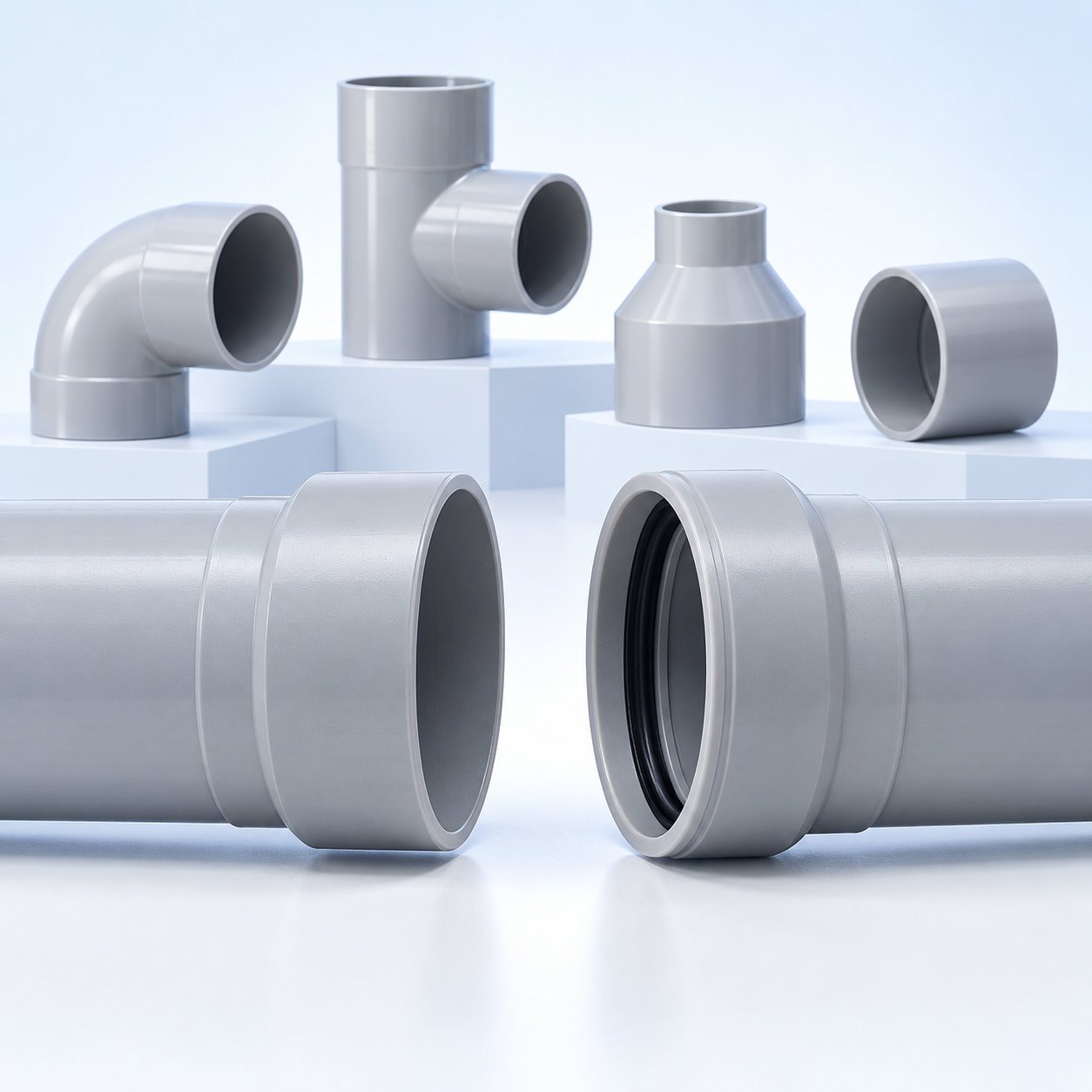

Grey PVC-U fittings — elbow, tee, reducer and coupler — above two pipe sockets: a plain solvent-cement socket on the left and a rubber-ring socket on the right
← Selfit socket Ringfit socket →

{{ cmpName }}: {{ cmpSum }}

SELFITRINGFIT
{{ r.l }} {{ r.a }} {{ r.b }}

Specifications as published on finolexpipes.com. Confirm size-specific availability with your dealer.

05 — PRODUCTS & FITTINGS

Build the right connection.

What do you need to do?
Type
End / joint
{{ itemCount }} results
product shot · {{ f.n }}
{{ f.type }}{{ f.taskLabel }}

{{ f.n }}

{{ f.use }}

Variants: {{ f.variants }}
Standard
{{ f.std }}
Type
{{ f.type }}
End
{{ f.end }}
Sizes
Download datasheet
No fittings match those filters.
06 — INSTALLATION SUPPORT

Correct installation. Dependable performance.

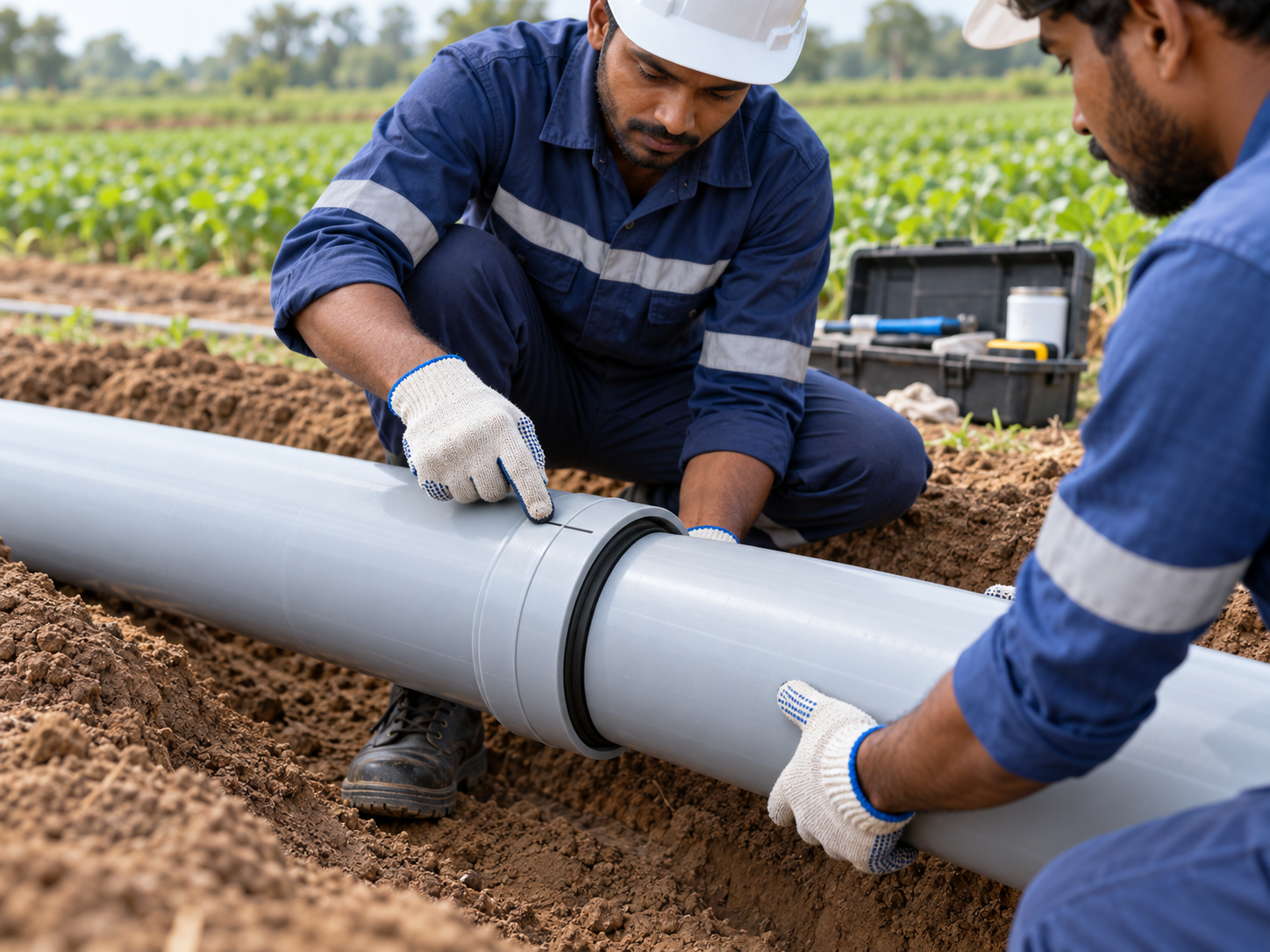

Two installers in work gloves push a grey PVC-U pipe into a rubber-ring socket in a field trench
video player · {{ instName }} installation{{ videoMode }} · {{ videoLang }}
  1. {{ s.ill }}
    {{ s.n }}

    {{ s.t }}

    {{ s.d }}

    2.
  • {{ t }}
  • ×{{ m }}

Use Finolex Agriculture Rubber Lubricant for pipes and fittings with rubber rings. Apply an even layer on the ring and the pipe’s outer diameter.

Packs: 50, 100, 250, 500 and 1000 g plastic containers.

PVC-U solvent cement for pipes up to 110 mm (4”), and heavy-duty solvent cement above 110 mm — both as per IS 14182.

Approx. joints per litre: 300 at 20 mm · 50 at 110 mm · 2 at 400 mm. Full table under Technical Details.
  • Store on a flat surface
  • Stack criss-cross, sockets facing outwards
  • Keep stacks no higher than 1 metre
  • Do not expose pipes to sunlight
07 — QUALITY & TECHNICAL DETAILS

Reliability engineered at every stage.

Every proof point below is translated into what it means on your land.

    2.
{{ stageN }} / 07 {{ stageT }} {{ stageD }}
{{ e.n }}

{{ e.t }}

{{ e.m }}

{{ e.p }}
Need datasheets for a tender or scheme? Download technical catalogue

Technical reference

  • Pipes conform to IS 4985 : 2021 (Bureau of Indian Standards)
  • Moulded fittings manufactured as per IS 7834
  • Fabricated fittings manufactured as per IS 10124
  • Approved and tested by CIPET and SGS laboratory
  • Solvent cement as per IS 14182
Agriculture range
20–400 mm
Ringfit
63–400 mm
Pressure classes
2.5 · 4 · 6 · 8 · 10 · 12.5 kgf/cm²

Recommended for water temperatures from 1°C to 45°C. As usage temperature increases, pipe strength and working pressure reduce. Occasional summer peaks with cooler nights have no adverse effect on working pressure.

  • Lay pipes on a firm, soft surface — never on rocky ground or near sharp objects
  • Not suitable for waterlogged areas
  • Never lay on stilts, stubbed columns or supports
  • Normally laid 1 m below ground (excluding pipe OD), deep enough to avoid damage from vehicles
  • Ringfit joints offer up to 2° of movement per joint
Pipe OD (mm)OD (inches)Approx. joints per litre of Finolex solvent cement
{{ c.mm }}{{ c.inch }}{{ c.j }}
An authorised dealer in a blue shirt shows a farmer a PVC-U socket fitting at a counter in a pipe store
08 — DEALER & EXPERT SUPPORT

The right solution is closer than you think.

Your recommendation{{ recLine }}
✓ Ready to share with your chosen dealer
3 authorised dealers near {{ resultFor }}sample data
✓ Availability request sent — dealers usually respond by phone or WhatsApp.
Speak with a Finolex expert Toll-free, for product selection and installation questions. 1800-200-3466
Buy with confidence
  • Buy only from dealers listed here as authorised
  • Check the Finolex name and IS 4985 marking on the pipe
  • Ask for a proper invoice with product details
  • Unsure? Verify the dealer on the toll-free line
09 — FAQS

Questions, answered.

{{ faqTitle }}

No matching questions. Call 1800-200-3466 to speak with an expert.

{{ f.a }}

Was this helpful?
 {{ f.thanksMsg }}

Ready to build a more dependable water system?

Download Product Brochure
